Non Contact Deflection Tester

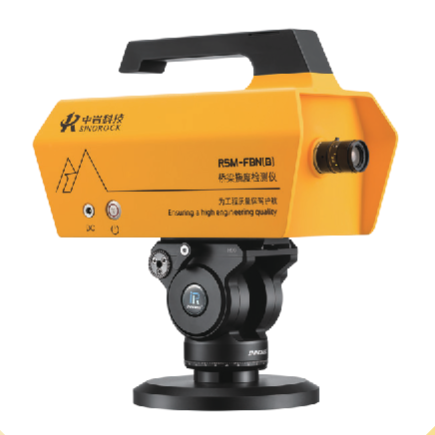

The RSM-FBN (B) Non-Contact Deflection tester utilizes industrial camera to capture digital images of structures such as bridges, towers and piles to measure two-dimensional deformation of the structure. The equipment is able to identify and calculate real time deformation data for multiple target points on the surface of the structure.
Applications
Measurement of two-dimensional deformation of structures such as bridges, towers, cranes, and buildings, as well as the detection of parameters including deflection, tilt, verticality, angles, geometric dimensions, linear strain, and crack width.
Technical Features
- High Detection Efficiency: Using advanced digital image correlation technology, the instrument does not require centering, leveling or installation of artificial markers.
- High Measurement Precision: The instrument has high measurement precision with millimeter-level precision over distances of up to 100 meters.
- High Interference Resistance: The instrument is designed to effectively suppress interference factors to ensure accurate and stable measurement results.
- High Integration: The instrument is highly integrated with industrial cameras and multi parameter sensors.
On-Going/Previous Projects:
- Pile set monitoring for RC Pile.
- Real-time displacement of the viaduct bridge at Penang when train passed through the monitoring location.
